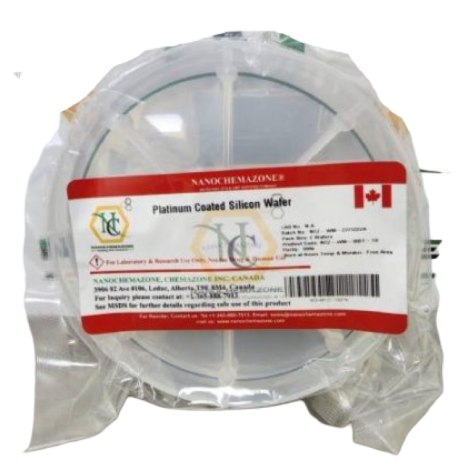

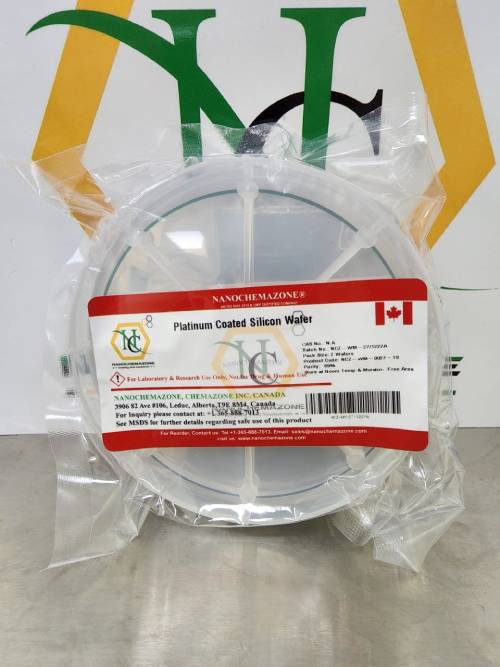

Platinum coated Silicon Wafer
$0.00
In Stock| Product Name |
Platinum Coated Silicon Wafer |
| Product Code | NCZ-WM-0027-19 |
| Diameter | 4” (101.6 mm), also available in 2, 3, 5, 6, 12″ |
| Coating | Platinum (Ask for Coating Customization) |
| Crystal Orientation | <100> /other orientations are also available |
| Surface | Single/Both Side Polished |
| Thickness | 20-300 nm (customization is also possible) |
| Resistivity | 1-10 ohm-cm |
| Crystal method | CZ |
| RRG | ≤12 % |
| Oxygen Contents | 12.5-16.5 ppm |
| Carbon Contents | ≤1 ppm |
We can coat all size wafers in the thickness range between 300-700 um, with single or double side
Description
Note: For pricing & ordering information, please contact us at sales@nanochemazone.com
Please contact us for quotes on Larger Quantities and customization. E-mail: contact@nanochemazone.com
Customization:
If you are planning to order large quantities for your industrial and academic needs, please note that customization of parameters (such as size, length, purity, functionalities, etc.) is available upon request.
NOTE:
Images, pictures, colors, particle sizes, purity, packing, descriptions, and specifications for the real and actual goods may differ. These are only used on the website for the purposes of reference, advertising, and portrayal. Please contact us via email at sales@nanochemazone.com or by phone at (365) 888-7013 if you have any questions.
