| Product Name |

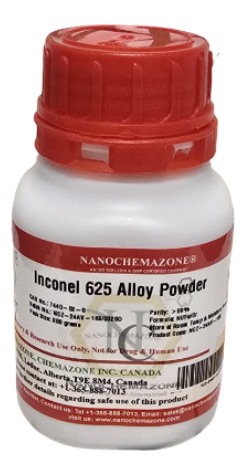

Inconel 625 Powder
|
| CAS No. |
7440-02-0 |
| Appearance |
Powder |
| Purity |
≥99.9% |
| APS |
1-5 µM, 15-53 µM (Can be customized),
Ask for other available size range. |
| Ingredient |
N/A |
| Product Code |
NCZ-24AV-165 |
Inconel 625 is a nickel-based super alloy that possesses high strength properties and resistance to elevated temperatures.Inconel 625 (Alloy 625, UNS N06625) is widely used for its high strength, excellent fabricability (including joining), and outstanding corrosion resistance.
Inconel 625 is a nickel-based super alloy that possesses high strength properties and resistance to elevated temperatures.Inconel 625 (Alloy 625, UNS N06625) is widely used for its high strength, excellent fabricability (including joining), and outstanding corrosion resistance. Its service temperatures range from cryogenic to 1800°F (982°C). High tensile, creep, and rupture strength, outstanding fatigue and thermal-fatigue strength, oxidation resistance and excellent weldability and brazeability are the properties of INCONEL alloy 625 that make it interesting to the aerospace field. It is being used in such applications as aircraft ducting systems, engine exhaust systems, thrust-reverser systems, resistance-welded honeycomb structures for housing engine controls, fuel and hydraulic line tubing, spray bars, bellows, turbine shroud rings, and heat-exchanger tubing in environmental control systems. It is also suitable for combustion system transition liners, turbine seals, compressor vanes, and thrust-chamber tubing for the rocket.
Product Specification
| Composition(Wt%) |
| In625 |
Cr |
Mo |
Nb |
Co |
Fe |
Al |
| 20-23 |
8-10 |
3.15-4.15 |
≤1 |
≤1 |
≤0.4 |
| Ti |
C |
Ni |
O |
N |
|
| ≤0.4 |
≤0.1 |
Bal. |
≤500ppm |
≤100ppm |
|
Common Size:15-45 um,15-53 um, 45-106 um,45-150 uM, -200/-300/-400/-500/-600 mesh etc,
| No |
Name |
Chemical Composition(Wt%) |
| 1 |
18Ni300 |
Ni17-19,Mo4.5-5.2,Co8.5-9.5,Ti0.6-0.8,Al0.05-0.15,Fe(Bal.) |
| 2 |
Hastelloy Alloy |
Fe17-20,Cr20.5-23,Mo8-10,W0.2-1,Co0.5-2.5,C0.05-0.15,Ni(Bal.) |
| 3 |
AlSi10Mg |
Si9-11,Mg0.2-0.45,Al(Bal.) |
| 4 |
CoCrW |
Cr26.5-29,W7-9,Si1.2-1.9,Co(Bal.) |
| 5 |
Co28Cr6Mo |
Cr27-29,Mo5-7,Co(Bal.) |
| 6 |
Spherical Ti Powder |
Ti≥99.9 |
| 7 |
TC4 |
Al5.5-6.8,V3.5-4.5,Ti(Bal.) |
| 8 |
TA15 |
Al5.5-7.1,V0.8-2.5,Mo0.8-2,Zr1.5-2.5,Al(Bal.) |
| 9 |
316L |
Cr16.00-18.00, Ni10.00-14.00,Mo2.00-3.00,Fe(Bal.) |
| 10 |
S136 |
Cr12.0-14.0,Si0.8-1.0,V0.15-0.4,C0.2-0.45,Fe(Bal.) |
| 11 |
In625 |
Cr20-23 , Mo8-10 , Nb 3.15-4.15 , Co≤1, Fe≤1 , Ni (bal.) |
| 12 |
In718 |
Cr17-21 , Mo2.8-3.3 , Nb 4.75-5.5 , Co≤1, Ni50-51 , Fe(Bal.) |
| 13 |
Spherical WC |
C3.7-4.2,W(Bal.) |
| 14 |
Spherical Cr Powder |
Cr≥99.9 |
| 15 |
Spherical Mo Powder |
Mo≥99.9 |
| 16 |
Spherical Ta Powder |
Ta≥99.9 |
| 17 |
Spherical W Powder |
W≥99.9 |
Mechanical Properties:
Tensile Strength/MPa:910±20
Yield Strength/MPa:460±20
Elongation After Break/%:60±5
Tensile Strength(815℃)/MPa:910±20
Yield Strength(815℃)/MPa:460±20
Elongation After Break(815℃)/%:60±5
Product Properties
- Appearance：Grey spherical powder
- Tapping Density：4.95g/m3
- Apparent density: 4.32g/m3
- Flowability：15.5s/50g
- Size: 15-53um
- PSD: D10:17.1um, D50:30.2um, D90: 50.9um
Inconel 625 Powder Properties /Description
Inconel 625 Powder is generally immediately available in most volumes. Nanochemazone produces many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural, and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research, and safety (MSDS) information are available, as is a Reference Calculator for converting relevant units of measurement.
Related Information:
Storage Conditions:
Airtight sealed, avoid light, and keep dry at room temperature.
Please get in touch with us for customization and price inquiry
Email: contact@nanochemazone.com
Note: We supply different size ranges of Nano and micron as per the client’s requirements and accept customization in various parameters.
