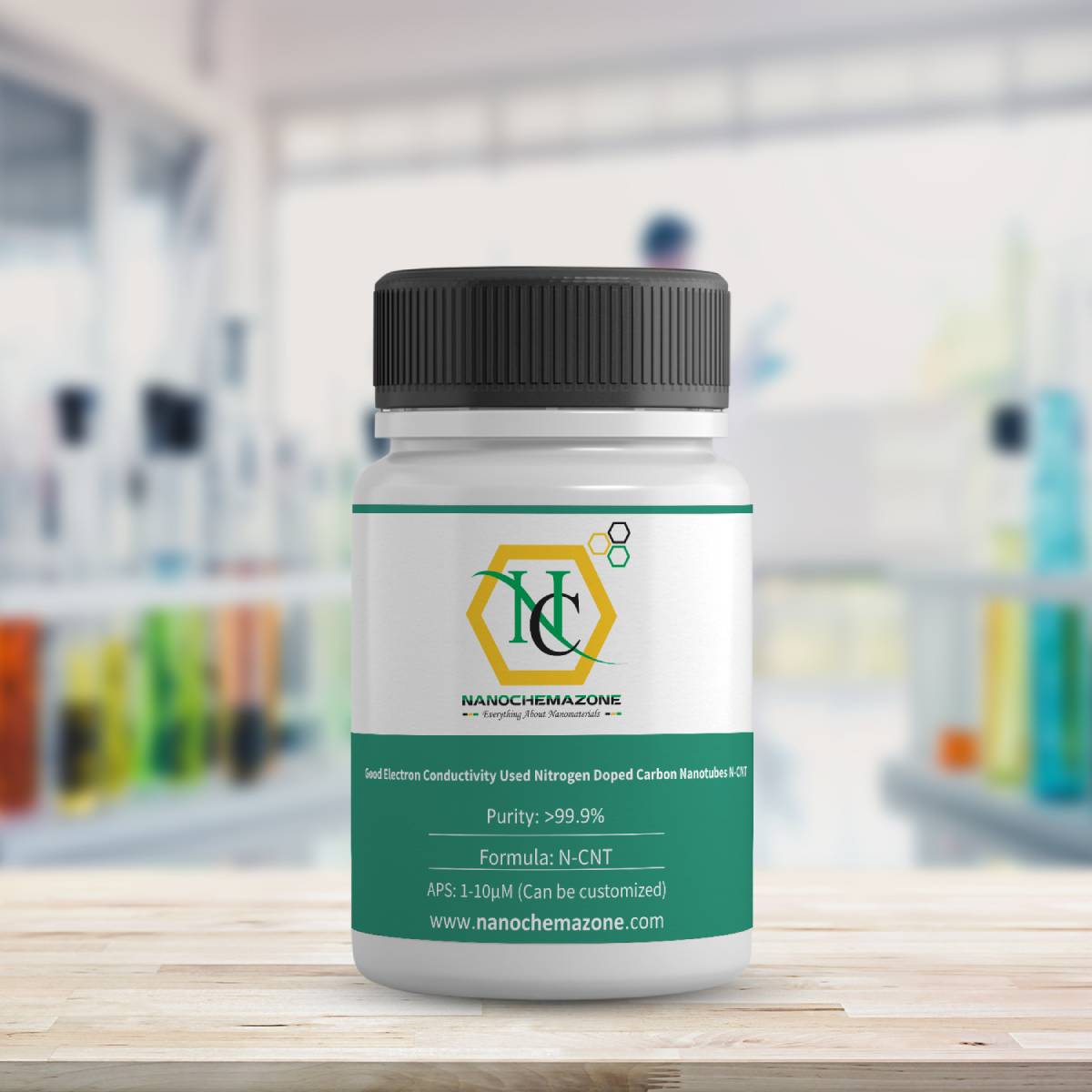

Good Electron Conductivity Used Nitrogen Doped Carbon Nanotubes N-CNT
| Product Name |
|
| CAS No. |
N/A |
| Appearance |
Powder |
| Purity |
≥99% |
| APS |
1-10µM (Can be customized) |
| Ingredient |
N-CNT |
| Product Code |
NCZ- HW-132/23 |
Good Electron Conductivity Used Nitrogen Doped Carbon Nanotubes
Nitrogen-doped graphitization multi-walled carbon nanotubes:
Outer diameter:10-30 nm
Length: 5-20 um
Purity: 99%
N content: about 3.5%
If you have further requirements for the specification, please feel free to contact us now!
Nitrogen, boron and phosphorus and carbon atoms similar size, there may be inserted into the graphite structure, thereby altering the chemical, mechanical and electrical properties of carbon nanotubes. Nitrogen-doped carbon nanotubes having n-type doping, the electron density changes around a nitrogen atom, it has a good electron conductivity, which are also aspects of the electronic effect of the catalytic material exhibits unique properties.
Nitrogen doping methods: nitrogen atoms in the carbon nanotubes doped with built-in, replace the formula and graft type, and so, we are using the graft type. Grafting reaction in the formula is a nitrogen-containing walls of carbon nanotubes modified by a chemical group, such as a nitrogen group, amino acid group and the like.
Preparation: chemical vapor deposition method. Chemical vapor deposition produced nitrogen-doped mass fraction is relatively low, usually around 3.5%. Difficult to achieve even higher levels.
The nitrogen-doped carbon nanotubes as catalyst supports in direct catalytic and catalytic, super capacitors and power of heterogeneous catalysis to extensive research, especially showing good performance when used as a catalyst carrier. Nitrogen surface of carbon nanotubes can improve the dispersion of metal nanoparticles and enhanced carrier interaction with the active site.
Good Electron Conductivity Used Nitrogen Doped Carbon Nanotubes N-CNT is generally immediately available in most volumes. Nanochemazone produces many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural, and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available. Additional technical, research, and safety (MSDS) information are available, as is a Reference Calculator for converting relevant units of measurement.
Related Information:
Storage Conditions:
Airtight sealed, avoid light, and keep dry at room temperature.
Please get in touch with us for customization and price inquiry
Email: contact@nanochemazone.com
Note: We supply different size ranges of Nano and micron as per the client’s requirements and accept customization in various parameters.
