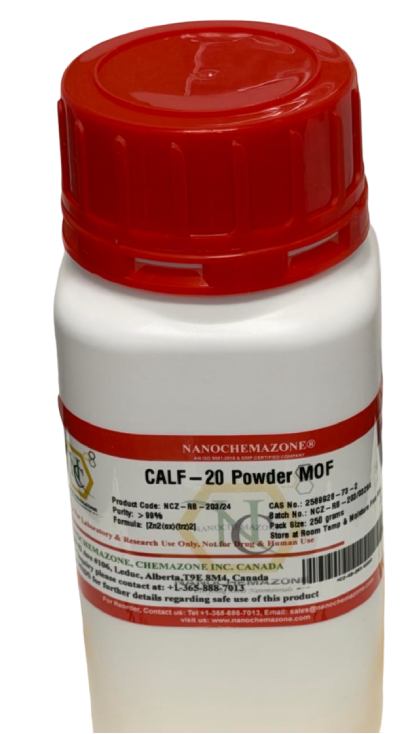

CALF-20 Powder Metal Organic Frameworks (MOFs)

Product	CALF-20 Powder Metal Organic Frameworks (MOFs)
CAS No.	2589928-73-2
Appearance	Powder
Purity	≥99%, ≥99.9%, ≥95% (Other purities are also available)
APS	1-5 µM, 10-53 µM (Can be customized), Ask for other available size range.
Pore size	0.3~0.5 nm
Ingredient	N/A
Specific surface area	≥400 ㎡/g
Product Code	NCZ-RB-203/24

CALF‑20 (Calgary Framework‑20)

CALF-20, known as Calgary Framework-20, is a high-purity metal–organic framework (MOF) composed of zinc ions coordinated with 1,2,4-triazolate and oxalate linkers. Its porous, crystalline structure demonstrates outsanding stability in humid, acidic, and steam-exposed environments. It generally appears as a white or off-white powder and exhibits superior performance in industrial settings.

Applications

Gas Adsorption and Storage: Capture and storage of gases including CO₂.
Catalysis:Reduction and conversion of CO₂ into valuable chemicals
Gas Separation: Suitable for CO₂/N₂ separation and CCS use cases.

CALF-20 (s) – Technical Data

Parameter	Details
Molecular Formula	C6H4N6O4Zn2
Linker	1,2,4-triazolate & oxalate
Molecular Weight	354.91 g/mol
CAS Number	2615135-00-5
Appearance	White to off white powder
Particle Size	0.5–1 µm
Specific Surface Area	450–550 m²/g
Pore Size	0.3–0.5 nm
Pore Volume	0.22 cm³/g
Stability	Stable under ambient conditions; thermally stable up to 350 °C
Applications	Gas separation, CO₂ capture, catalysis, drug delivery
Storage Conditions	Store at room temp or 2-30 °C; dry environment; protect from light & moisture. It is recommended to activate for 12 hours at 120 degree in vacuum before Gas-Adsorption test

CALF-20 Powder Metal Organic Frameworks (MOFs) Description

CALF-20 Powder Metal Organic Frameworks (MOFs) is generally immediately available in most volumes. Nanochemazone produces to many standard grades when applicable, including Mil Spec (military grade); ACS, Reagent and Technical Grade; Food, Agricultural and Pharmaceutical Grade; Optical Grade, USP and EP/BP (European Pharmacopoeia/British Pharmacopoeia) and follows applicable ASTM testing standards. Typical and custom packaging is available, as is additional technical and safety (MSDS) data. Please contact us for information on lead time and pricing above.

CALF-20 Powder Metal Organic Frameworks (MOFs) Related Information

Storage Conditions:

Airtight sealed, avoid light and keep dry at room temperature.
